Cim LCD Zaub rau of elevators

Khoom Paub meej

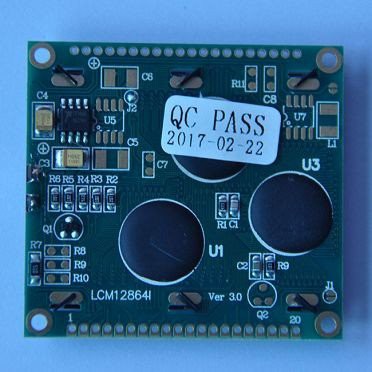

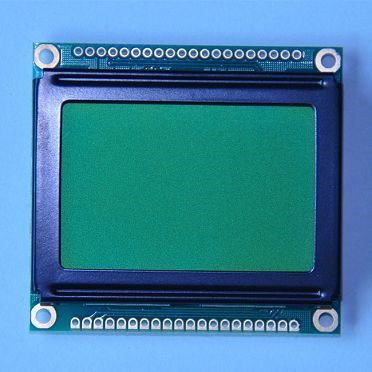

Qhov no 128 * 64 graphic COB LCD module muaj kev sib xyaw ua ke 0107 thiab 0108 los yog siv tau tshaj cov khoom siv. Txij li cov duab LCD no yog ib qho transflective, zoo-hom zaub, lub backlight tej zaum yuav raug muab tua thaum muaj txaus ambient teeb los nyeem cov zaub. Cov zaub no zoo haum rau of Elevators, lossis txhua daim ntawv thov uas xav tau ntau cov zaub hauv thaj chaw me me.

Kev kho mob Specification

Qhov Loj: 54 (L) * 50 (W) * Max 7.7 (T) mm

-Saib cheeb tsam: 43.5(L) * 28.8(W)mm

-Dot loj: 0.28(W) * 0.35(H)mm

-Dot suab: 0.32(W) * 0.39(H)mm

Nta

-Display hom: 128 * 64 dots

-LCD Hom: STN, Zoo (YG), Transflective

-Driver Condition: LCD Module: 1/128Duty, 1/9Bias

-Saib cov lus qhia: 6 teev

-Backlight Hom: SIDE YG

-Interface: 8-ntsis MPU interface

- Tsav IC: 0107, 0108

Daim ntawv thov

Cov Khoom Siv Hluav Taws Xob: Tshuab xam zauv, hluav taws xob tswb, CD, VCD, MP3 player ...

Cov khoom siv sib txuas lus: Xov tooj ntawm tes, IC xov tooj, Xov tooj xov tooj, Xov tooj txawb, Xov tooj Wireless, PDA ...

Cim npe nrov: cim LCD zaub rau of elevator, Tuam Tshoj, lwm tus neeg, Hoobkas, customized, hais, yuav luv nqi, dawb qauv, ua nyob rau hauv Suav teb
