LCD Screen Module rau Kev Lag Luam Hauv Hluav Taws Xob

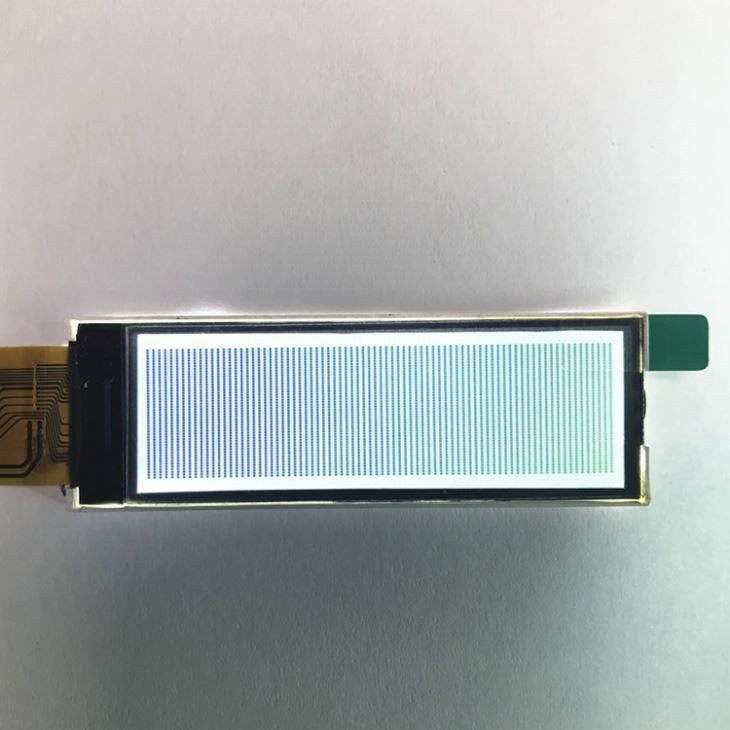

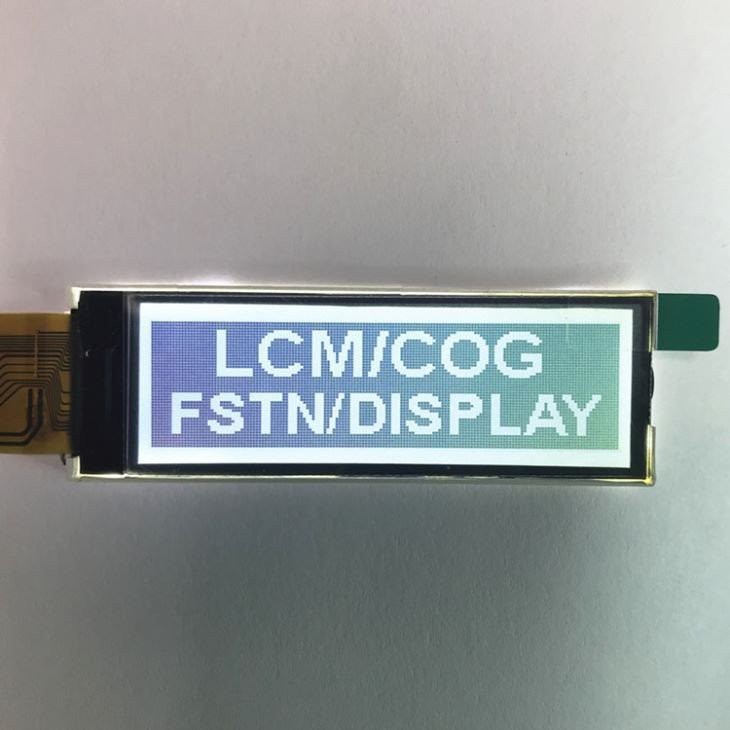

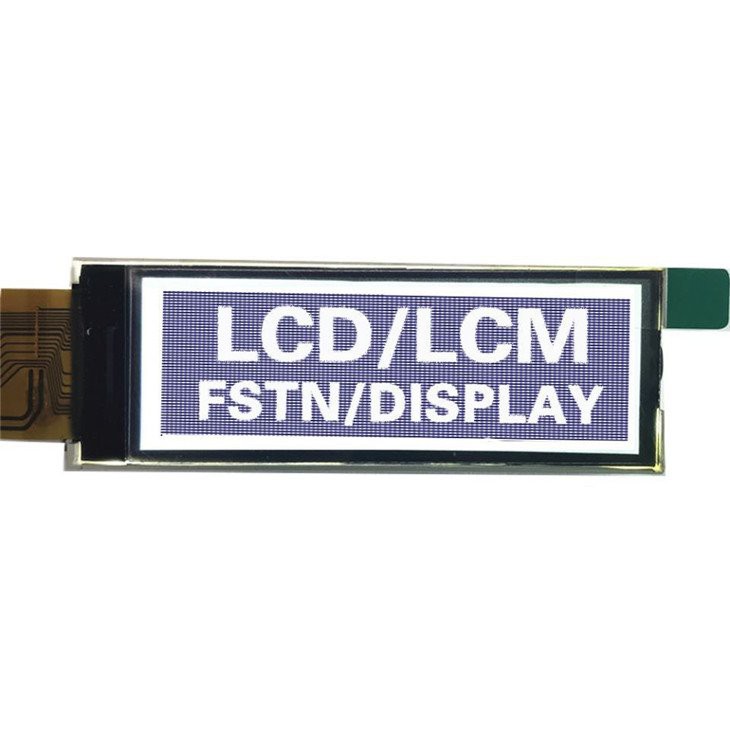

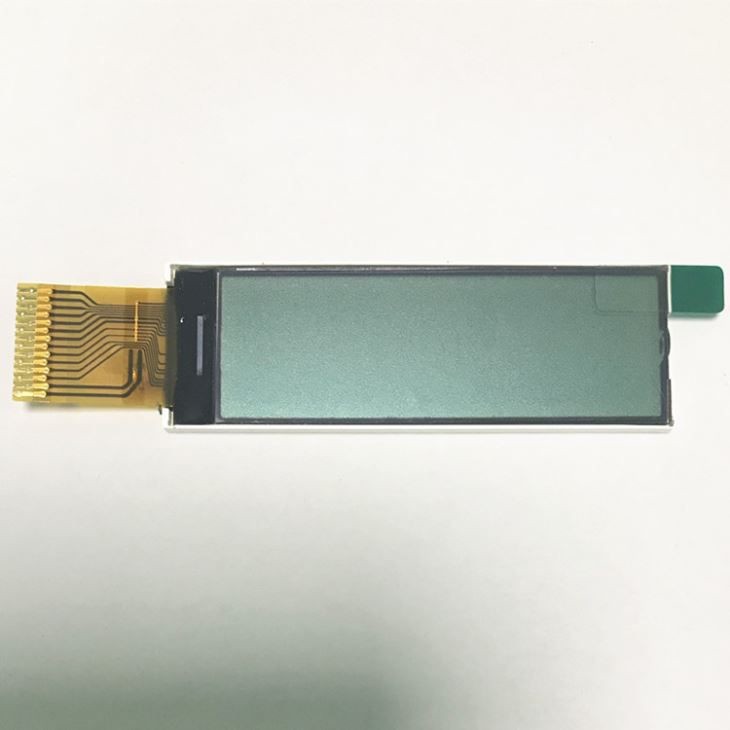

Peb tsim qhov no 160 x 48 graphic LCD zaub module kom nws haum rau lub ntsej muag ntawm 2.2-inch wide devices xws li cov hniav servers, disk drive carriers, thiab expansion cards.
- Khoom Taw qhia
Khoom Paub meej
Peb tsim qhov no 160 x 48 graphic LCD zaub module kom nws haum rau lub ntsej muag ntawm 2.2-inch wide devices xws li cov hniav servers, disk drive carriers, thiab expansion cards.
Cov zaub no siv ob lub neej ntev dawb LEDs rau nws lub teeb nraub qaum. Lub zog hluav taws xob yog 10v. Rau lub neej ntev, peb pom zoo kom tsav lub teeb rov qab ntawm 12mA. Txoj hauv kev zoo tshaj plaws los tsav lub teeb rov qab yog siv cov khoom siv tas li. Feem ntau cov khoom siv hloov pauv tsim los tswj tam sim no ua haujlwm zoo.
Cov yam ntxwv ntawm LCD
160x48 LCD zaub | |
Kev daws teeb meem | 160x48 |

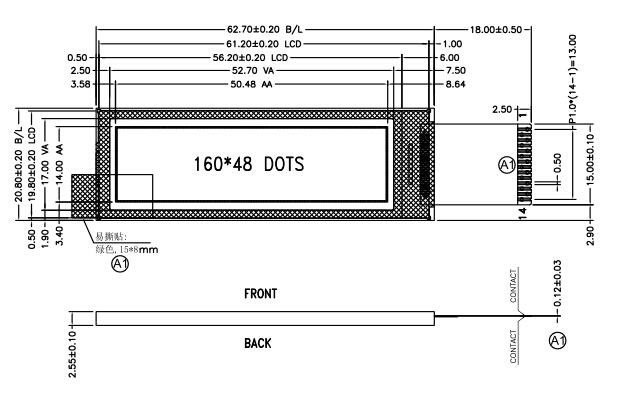

Daim Ntawv Qhia Loj | 62.7 * 20.8 hli |
Saib cheeb tsam | 52.7 * 17 hli |
Chaw ua haujlwm | 50.48 * 14mm |
Txuas | COG plus FPC |
Driver IC | TIAB SA 1604C |
Backlight | 2PCS dawb LEDS |
Zaub hom | FSTN, Transflective, Zoo |
Saib lub kaum sab xis | 6:00 |
Txoj Kev Tsav Tsheb | 1/64 lub luag haujlwm, 1/9 bias |
VOP | 10V |
VDD | 3.3V |
Sab saum toj | -20 degree TO ntxiv rau 70 degree |
Tst | -30 degree Rau ntxiv 80 degree |
Raws li RoHS | Yog lawm |
Thov hu rau peb rau datasheet thiab programming | |
FAQ
1. Koj puas tuaj yeem lav cov khoom siv mus sij hawm ntev?
Yog lawm, ntau tshaj 6 xyoo ntawm lub Hoobkas muaj zog lav khoom mus sij hawm ntev.
2. Koj puas tuaj yeem muab kev pabcuam?
Yog lawm, peb tuaj yeem muab kev txhawb nqa ntawm LCD koj yuav.
3. Peb MOQ?
Nyob zoo, peb txais koj qhov kev txiav txim ua 1 daim.
4. Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?
Peb yog cov chaw tsim khoom hauv LCD zaub ntau tshaj 6 xyoo.
5. Kuv tuaj yeem them rau qhov kev txiav txim li cas?
Peb cov nqe lus them nqi: T / T, Paypal, Hloov Nyiaj Txiag, thiab lwm yam.
