Me me Graphic LCD Zaub Module
Rau tag nrho peb cov khoom siv LCD, peb cov kws tsim qauv tsim tau sau ntau cov ntaub ntawv tswj hwm lcd thaum kuaj xyuas cov khoom sib txawv thiab cov chipsets. Peb tau ntxiv lawv ntawm no los ua kom yooj yim rau koj tuaj yeem ua haujlwm nrog cov tswj sib txawv thiab chipsets.
- Khoom Taw qhia
Khoom Paub meej
Rau tag nrho peb cov khoom siv LCD, peb cov kws tsim qauv tsim tau sau ntau cov ntaub ntawv tswj hwm lcd thaum kuaj xyuas cov khoom sib txawv thiab cov chipsets. Peb tau ntxiv lawv ntawm no los ua kom yooj yim rau koj tuaj yeem ua haujlwm nrog cov tswj sib txawv thiab chipsets. Cov ntaub ntawv LCD no tsis tsim lossis tswj los ntawm Crystalfontz; lawv tsuas yog muab "raws li yog" rau koj siv.

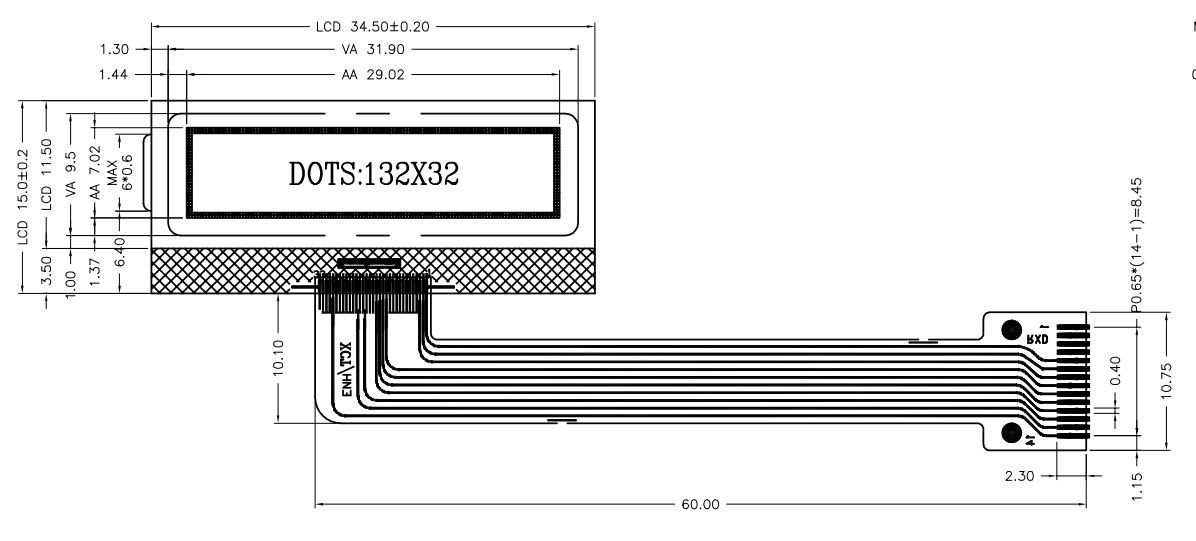

Specifications
Me me Graphic LCD zaub | |
Daim Ntawv Qhia Loj | 34.5 x 15 mm |
Saib cheeb tsam | 31.9 x 9.5 mm |
Chaw ua haujlwm | 29.02 x 7.02 hli |
Zaub daws teeb meem | 132x32 |
Zaub hom | FSTN/Reflective/Positive |
Saib lub kaum sab xis | 12:00 |
Txoj Kev Tsav Tsheb | 1/32 lub luag haujlwm, 1/6 bias |
VOP | 6.2V |
VDD | 3.0V |
TOP | -10 - ntxiv 60 |
TST | -20- ntxiv 70 |
Txuas | COG plus FPC |
Driver IC | ST7567 (los yog lwm yam tshaj IC) |
Raws li RoHS | Yog lawm |
1. Hom Zaub: FSTN / Reflective / Zoo.
2. Saib lub kaum ntse ntse: 12 0'clock.
3. Drive Method: 1/32 Duty 1/6 Bias, Vop=6.2V (tus qauv neeg siv), Vdd=3.0V.
4. Sab saum toj: -10 degree ~ ntxiv rau 60 degree, Tst: -20 degree degree ~ ntxiv rau 70 degree .
5. Connector: COG plus FPC.
6. Tsav IC: ST7567 (los yog lwm yam IC tshaj)
7. Raws li RoHS: Yog.
FAQ
1. Koj puas tuaj yeem muab cov duab kos thiab cov txheej txheem cuam tshuam?
A: Peb tuaj yeem muab cov duab kos thiab cov txheej txheem rau cov neeg siv khoom kom paub meej.
2. Koj tswj cov khoom zoo li cas?
A: Cov khoom yog ci, kev laus, kev ntsuas hluav taws xob thiab lwm cov txheej txheem rau kev sim.
3. Puas yog cov khoom hauv Tshuag? Lub voj voog ntau lawm ntev npaum li cas?
A: Qee cov khoom muaj nyob rau hauv Tshuag, Me me batch ntau lawm rau 1 lub lis piam, ntau lawm rau 2 lub lis piam.
Cim npe nrov: me me graphic LCD zaub module, Tuam Tshoj, lwm tus neeg, Hoobkas, customized, hais, yuav luv nqi, dawb qauv, ua nyob rau hauv Suav teb
