Dawb Ntawm Blue Graphic LCD
Hongrui yog ib lub chaw tsim khoom ntawm cov cim LCD zaub modules hauv Suav teb. Peb muab ntau qhov ntau thiab tsawg xws li 8x1 cim, 8x2 cim, 16x4 cim, 20x4 cim ntxiv rau ntau ntxiv. Txawm hais tias koj tab tom nrhiav rau lub cim me me lcd zaub module rau cov khoom me me lossis lub cim loj lcd zaub rau kos npe, peb muaj lawv.
- Khoom Taw qhia
Khoom Paub meej
Hongrui yog ib lub chaw tsim khoom ntawm cov cim LCD zaub modules hauv Suav teb. Peb muab ntau qhov ntau thiab tsawg xws li 8x1 cim, 8x2 cim, 16x4 cim, 20x4 cim ntxiv rau ntau ntxiv. Txawm hais tias koj tab tom nrhiav rau lub cim me me lcd zaub module rau cov khoom me me lossis lub cim loj lcd zaub rau kos npe, peb muaj lawv. Ntau ntawm peb cov cim lcd modules siv tus txheej txheem HD44780 maub los, yog li lawv tuaj yeem ua ke sai sai rau hauv cov khoom tshiab lossis siv los hloov hauv koj cov khoom uas twb muaj lawm. Soj ntsuam los ntawm nta, tso saib technology & qhov ntev.

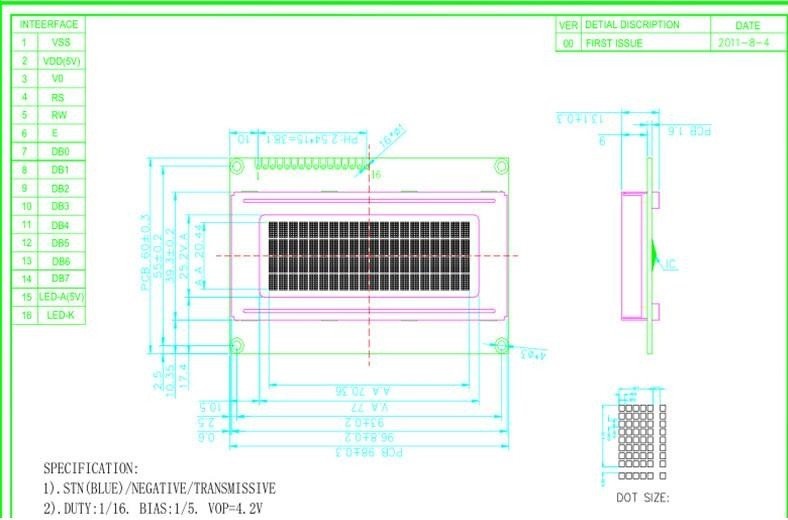

Specifications
Dawb Ntawm Blue Graphic LCD | |
Daim duab Dimension | 98 (L) * 60 (W) * Max 13.2 (T) mm |
Saib cheeb tsam | 77 (L) * 25.2 (W) hli |
Tswj IC | SWB 780D |
Hom zaub | 20 x 4 kab |
Hom LCD | STN, NEGATIVE(BLUE), TRANSMISSIVE |
Tsav Tsheb | LCD Module: 1/16Duty, 1/5Bias |
Interface | 8-ntsis MPU interface |
Saib Kev Qhia | 6 hnu |
Backlight Hom | SIJ HAWM |
VOP | 4.2V |
Kev ua haujlwm kub | -20 ~ 70 degree |
STORAGE TEMPERATURE | -30 ~ 80 degree |
Peb muaj ib pab kws tshaj lij, muaj lus nug thov qhia rau peb. | |
FAQ
1. Q: Kuv puas tuaj yeem muaj tus qauv txiav txim?
A: Yog, Peb zoo siab txais tos cov qauv rau koj los kuaj qhov zoo.
2. Q: Kuv tuaj yeem tau txais tus qauv ntev npaum li cas?
A: Cov qauv tam sim no xav tau 3 mus rau 5 hnub, cov qauv customized xav tau 14 txog 20 Hnub.
3. Q: Koj puas tuaj yeem muab cov duab kos thiab cov txheej txheem cuam tshuam?
A: Peb tuaj yeem muab cov duab kos thiab cov txheej txheem rau cov neeg siv khoom kom paub meej.
