Dub Ntawm Dawb Graphic LCD
VA TN LCD Display Module cov khoom lag luam yog siv ntau yam khoom siv hluav taws xob, muaj cov txiaj ntsig zoo. Lub hnub ci nyeem tau dub 128x64 duab LCD nrog lub tshuab hluav taws xob zoo thiab qhov kub thiab txias.
- Khoom Taw qhia
Khoom Paub meej
VA TN LCD Display Module cov khoom lag luam yog siv ntau yam khoom siv hluav taws xob, muaj cov txiaj ntsig zoo. Lub hnub ci nyeem tau dub 128x64 duab LCD nrog lub tshuab hluav taws xob zoo thiab qhov kub thiab txias.
Specifications
Dub ntawm Dawb 128x64 Graphic LCD | |
LCD Loj | 2.3 nti |
Kev daws teeb meem | 128x64 |
Zaub hom | FSTN, Transflective, Zoo |
Chaw ua haujlwm | 35.436 * 22.38 hli |
Saib cheeb tsam | 38 * 24.3 hli |
Module Loj | 42 * 31.6 hli |
Ua haujlwm kub | -20 - ntxiv 70 |
Cia Kub | -30 - ntxiv 80 |
Txuas | COG plus FPC |
Saib lub kaum sab xis | 6:00 teev |

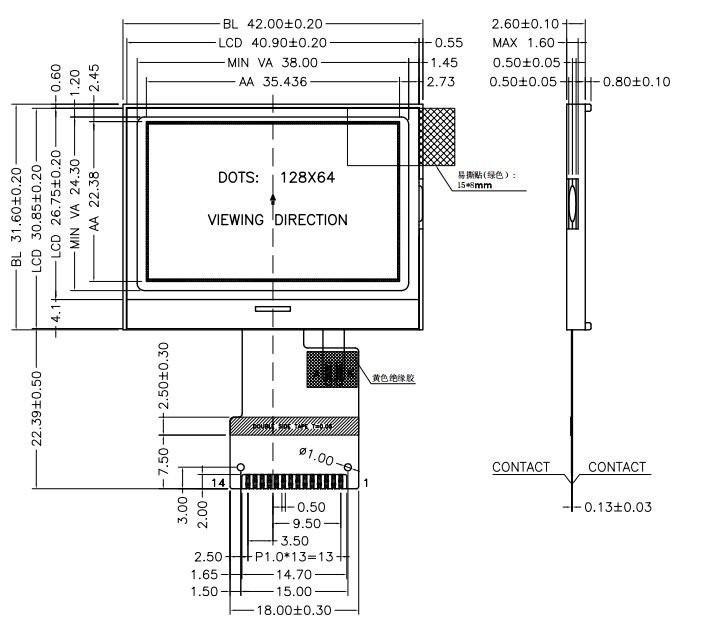

Nco tseg: Xa mus rau Mechanical Drawing | |
1. Zaub hom: FSTN/Transflective/Positive.
2. Saib lub kaum ntse ntse: 6 0'clock.
3. Drive Method: 1/64 Duty, 1/9 Bias, Vop=8.7V, Vdd=3.0V.
4. Sab saum toj: -20 degree ~ ntxiv rau 70 degree degree, Tst: -30 degree degree ~ ntxiv rau 80 degree .
5. Connector: COG plus FPC.
6. Tsav IC: ST7567
7. Backlight: 3PCS WHITE LEDS, Yog =45mA & Vf=3.0±0.10V
8. Nrog "*" Mark Dimensions yog qhov tseem ceeb Dimensions
FAQ
1. Koj tswj cov khoom zoo li cas?
A: Cov khoom yog ci, kev laus, kev ntsuas hluav taws xob thiab lwm cov txheej txheem rau kev sim.
2. Puas yog cov khoom hauv Tshuag? Lub voj voog ntau lawm ntev npaum li cas?
A: Qee cov khoom muaj nyob rau hauv Tshuag, Me me batch ntau lawm rau 1 lub lis piam, Mass ntau lawm rau 2 lub lis piam.
3. Koj puas yog cov tub lag luam lossis lub Hoobkas?
A: Peb yog cov chaw tsim khoom, muaj cov cim lag luam thiab cov neeg ua haujlwm tsim khoom.
4. Koj puas qhib rau OEM ua?
A: Yog lawm, peb tuaj yeem OEM.
