Monochrome LCD zaub nrog Backlight

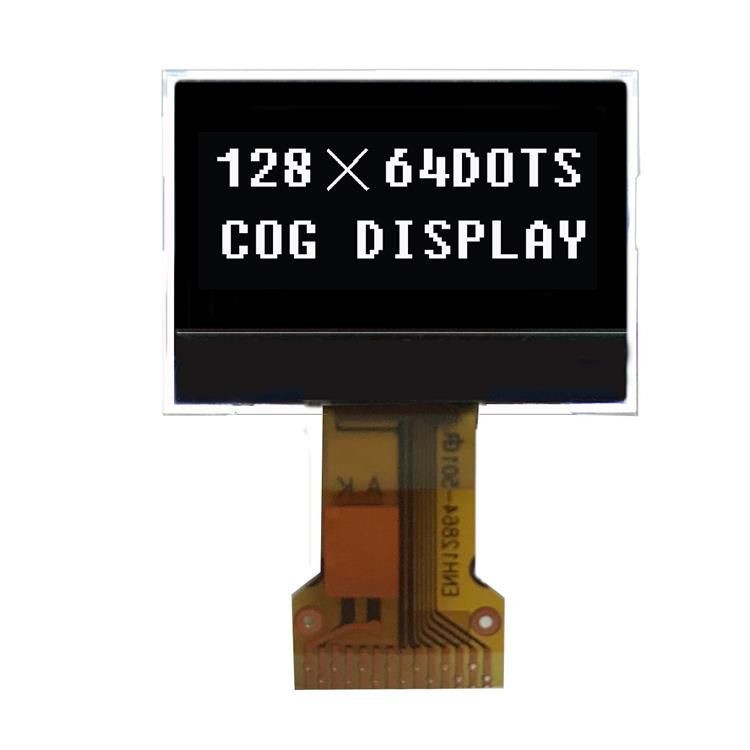

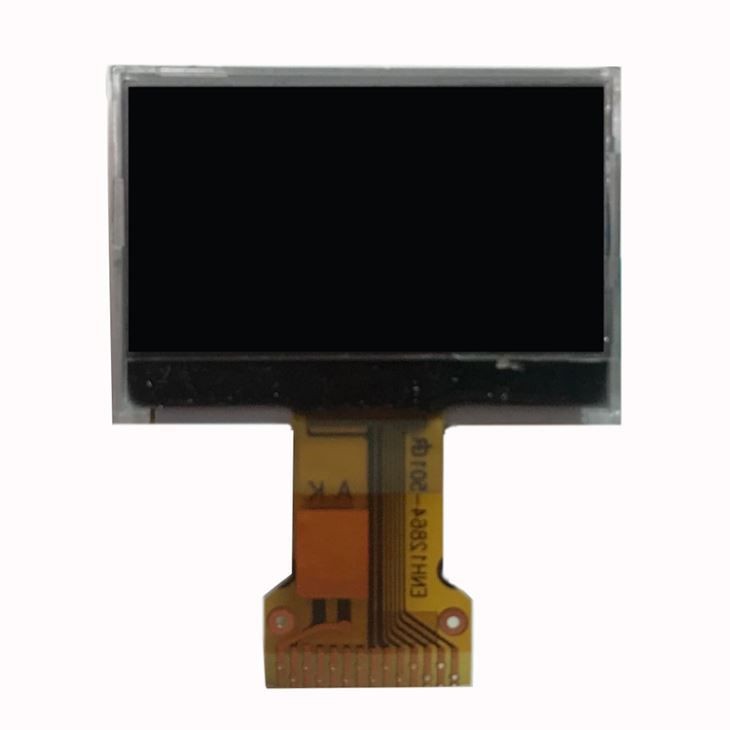

Qhov no 128x64 graphic LCD zaub module (ENH-DG128064-45) yog ib qho me me, nyias, thiab lub zog qis heev. Cov zaub no pom nyob rau hauv feem ntau teeb pom kev zoo, nrog rau cov chaw ua haujlwm ib txwm teeb pom kev zoo txog lub hnub ci ci.
- Khoom Taw qhia
Khoom Paub meej
Qhov no 128x64 graphic LCD zaub module (ENH-DG128064-45) yog ib qho me me, nyias, thiab lub zog qis heev. Cov zaub no pom nyob rau hauv feem ntau teeb pom kev zoo, nrog rau cov chaw ua haujlwm ib txwm teeb pom kev zoo txog lub hnub ci ci. Txij li thaum lub LCD module no tsis muaj teeb pom kev zoo, tsis muaj lub zog siv rau lub teeb rov qab, txawm li cas los xij, cov zaub tsis tuaj yeem pom hauv qhov tsaus ntuj yam tsis muaj lub teeb pom kev sab nraud. Cov zaub no zoo haum rau cov khoom siv tes tuav uas tsis tshua muaj zog uas ib txwm siv nyob rau hauv qhov chaw muaj teeb pom kev zoo.
Rau siv xwb. Rau cov hom phiaj tsim, thov siv cov lus qhia tshwj xeeb hauv cov ntaub ntawv.
Specifications
128x64 Monochrome LCD zaub nrog Backlight | |
Kev daws teeb meem | 128*64 |
Daim Ntawv Qhia Loj | 30.18 * 21.40 hli |
Saib cheeb tsam | 26.58 * 14.5 hli |
Chaw ua haujlwm | 25.58 * 14.06 hli |
VDD | 3.0V |
Driver IC | SWB 7567 Stb |
Backlight | 3 WLED |
Zaub hom | DFSTN, Transmissive, Negative |
Saib lub kaum sab xis | 6:00 |
Txoj Kev Tsav Tsheb | 1/64 lub luag haujlwm, 1/9 bias |
Sab saum toj | -10 degree Rau ntxiv 60 degree |
Tst | -20 degree Rau ntxiv 70 degree |
Raws li RoHS | Yog lawm |
Thov hu rau peb rau datasheet thiab programming. | |

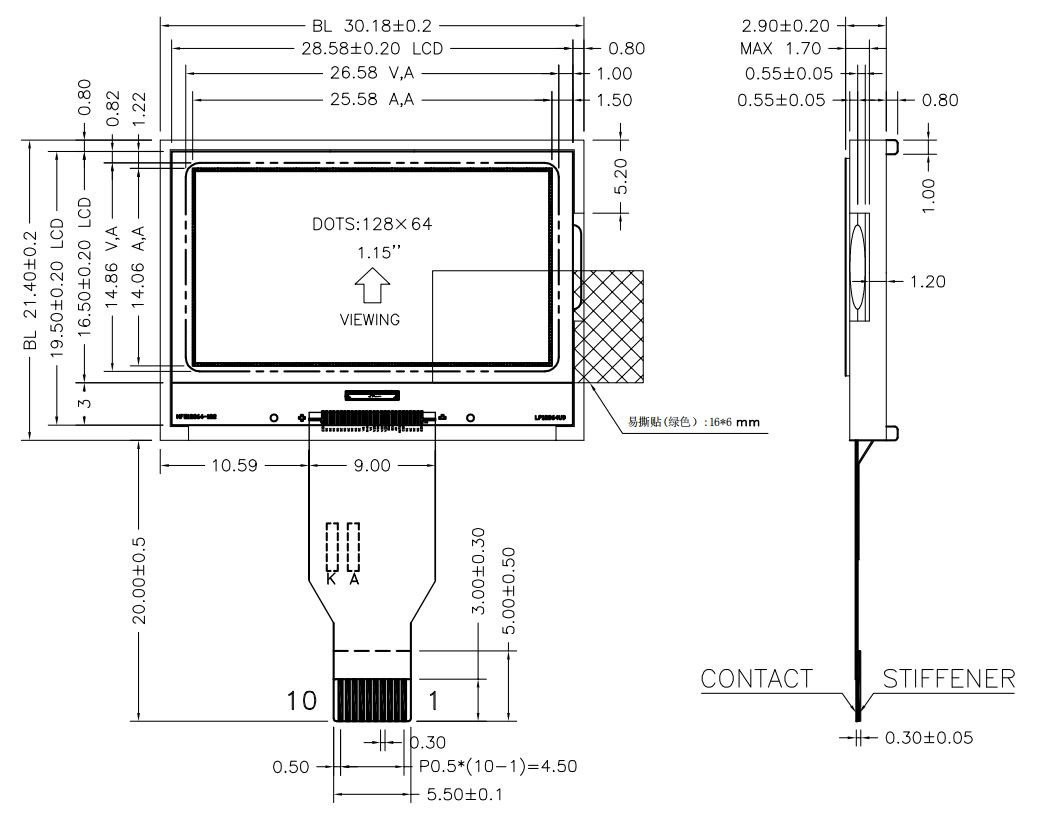

1. Zaub hom: DFSTN/Transmissive/negative.
2. Saib lub kaum ntse ntse: 6 0'clock
3. Drive Method: 1/64 Duty 1/9 Bias, Vop= 8.7V, Vdd= 3.0V.
4. Sab saum toj: -10 degree ~ ntxiv rau 60 degree degree, Tst: -20 degree degree ~ ntxiv rau 70 degree degree .
5. Connector: COG plus FPC.
6. Tsav IC: ST7567S
7. Backlight: 3PCS WHITE LEDS, Yog =45mA & Vf=3.0±0.10V
8. Nrog "*" Mark Dimensions yog qhov tseem ceeb Dimensions.
FAQ
1. Q: Kuv puas tuaj yeem muaj tus qauv txiav txim?
A: Yog, Peb zoo siab txais tos cov qauv rau koj los kuaj qhov zoo.
2. Q: Koj puas muaj MOQ txwv?
A: Tsis yog, Peb tsis yog.
3. Q: Kuv tuaj yeem tau txais tus qauv ntev npaum li cas?
A: Cov qauv tam sim no xav tau 3 mus rau 5 hnub, cov qauv customized xav tau 14 txog 20 Hnub.
