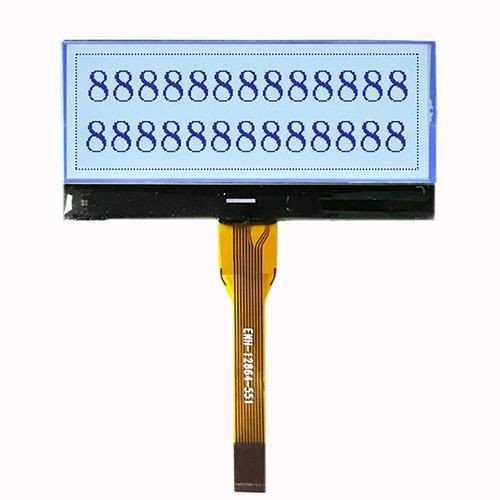

Monochrome LCD zaub nrog Dawb Backlight
Monochrome LCD Zaub Nrog Dawb Backlight khoom yog siv nyob rau hauv ntau yam khoom siv hluav taws xob, muaj cov nyhuv zoo. VA kua siv lead ua yog luv rau Vertical Alignment kua siv lead ua. Lub hnub ci nyeem tau dub 128x64 duab LCD nrog lub tshuab hluav taws xob zoo thiab qhov kub thiab txias.
- Khoom Taw qhia
Khoom Paub meej
Monochrome LCD Zaub Nrog Dawb Backlight khoom yog siv nyob rau hauv ntau yam khoom siv hluav taws xob, muaj cov nyhuv zoo. VA kua siv lead ua yog luv rau Vertical Alignment kua siv lead ua. Lub hnub ci nyeem tau dub 128x64 duab LCD nrog lub tshuab hluav taws xob zoo thiab qhov kub thiab txias.
Specifications
128x64 Monochrome LCD Zaub nrog Dawb Backlight | |
Daim Ntawv Qhia Loj | 63 x 30,7 mm |
Saib cheeb tsam | 60 x 21,7 mm |
Chaw ua haujlwm | 55.02 x 19.82 hli |
Kev daws teeb meem | 128x64 |
Zaub hom | FSTN/Transflective/Positive |
Saib lub kaum sab xis | 6:00 |
Txoj Kev Tsav Tsheb | 1/65 lub luag haujlwm, 1/9 bias |
VOP | 8.0V |
VDD | 3.0V |
TOP | -20- ntxiv 70 |
TST | -20- ntxiv 70 |
Tsav IC | TIAB SA 7567 |
Backlight | Dawb LED |
Kev siv LCD
Enrich TFT modules zoo meej rau ntau daim ntawv thov suav nrog kev tswj hwm kev lag luam, tshuab kas fes, khoom siv kho mob, POS system, automation, GPS navigator, khoom dawb, tswj hluav taws xob, xov tooj, khoom siv kho mob thiab lwm yam.
FAQ
1. Q: Kuv puas tuaj yeem muaj tus qauv txiav txim?
A: Yog, Peb zoo siab txais tos cov qauv rau koj los kuaj qhov zoo.
2. Q: Koj puas muaj MOQ txwv?
A: Tsis yog, Peb tsis yog.
3. Q: Kuv tuaj yeem tau txais tus qauv ntev npaum li cas?
A: Cov qauv tam sim no xav tau 3 mus rau 5 hnub, cov qauv customized xav tau 14 txog 20 Hnub.
