Parallel LCD Zaub Module
Qhov no yog ib qho tsis tshua muaj zog lcd nraaj zaub 128x64. Kev sib xyaw xiav LED backlight yooj yim illuminates no graphical lcd zaub nyob rau hauv lub teeb qis. Cov duab lcd zaub module no zoo kawg nkaus haum rau kev tuav tes lossis txhua daim ntawv thov uas yuav tsum tau siv hluav taws xob tsawg lossis cov zaub nyias nyias.
- Khoom Taw qhia
Khoom Paub meej
Qhov no yog ib qho tsis tshua muaj zog lcd nraaj zaub 128x64. Kev sib xyaw xiav LED backlight yooj yim illuminates no graphical lcd zaub nyob rau hauv lub teeb qis. Cov duab lcd zaub module no zoo kawg nkaus haum rau kev tuav tes lossis txhua daim ntawv thov uas yuav tsum tau siv hluav taws xob tsawg lossis cov zaub nyias nyias. Nws muaj kev sib xyaw ua ke ST7567 maub los. FFC yog tsim los rau cov khoom siv pheej yig, tsis tas yuav muaj qhov sib txuas sib txuas raws li cov khoom siv ncaj qha rau koj lub PCB.
Specifications
128 * 64 Parallel LCD Zaub Module | |
Kev daws teeb meem | 128x64 |

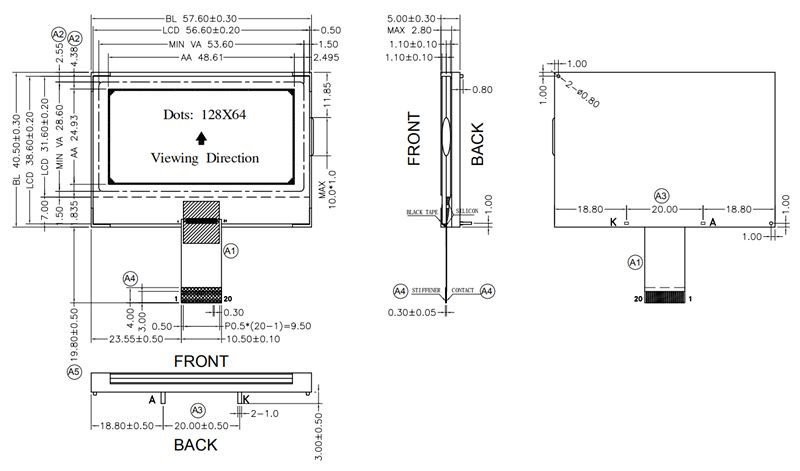

Daim Ntawv Qhia Loj | 57.6 * 40.5 hli |
Saib cheeb tsam | 53.6 * 28.6 hli |
Chaw ua haujlwm | 48.60 * 24.93 hli |
Txuas | COG plus FPC |
Driver IC | TIAB SA 7567 |
Backlight | BLED |
Zaub hom | FSTN, Transflective, Zoo |
Saib lub kaum sab xis | 6:00 |
Txoj Kev Tsav Tsheb | 1/64 lub luag haujlwm, 1/7 bias |
Sab saum toj | -10 degree TO ntxiv 60 degree |
Tst | -20 degree TO ntxiv rau 70 degree |
Raws li RoHS | Yog lawm |
1. Zaub hom: FSTN/Transflective/Positive.
2. Saib lub kaum ntse ntse: 6 0'clock.
3. Tsav txoj kev: 1/64 Duty 1/7 Bias, Vop= 8.2V, Vdd= 2.8V.
4. Sab saum toj: -10 degree ~ ntxiv rau 60 degree degree, Tst: -20 degree degree ~ ntxiv rau 70 degree degree .
5. Connector: COG plus FPC.
6. Tsav IC: ST7567 (los yog lwm yam IC tshaj)
7. Backlight: 1pcs BLUE LED, 3.0V/15mA
FAQ
1. Q: Kuv puas tuaj yeem muaj tus qauv txiav txim?
A: Yog, Peb zoo siab txais tos cov qauv rau koj los kuaj qhov zoo.
2. Q: Koj puas muaj MOQ txwv?
A: Tsis yog, Peb tsis yog
3. Q: Kuv tuaj yeem tau txais tus qauv ntev npaum li cas?
A: Cov qauv tam sim no xav tau 3 mus rau 5 hnub, cov qauv customized xav tau 14 txog 20 Hnub.
