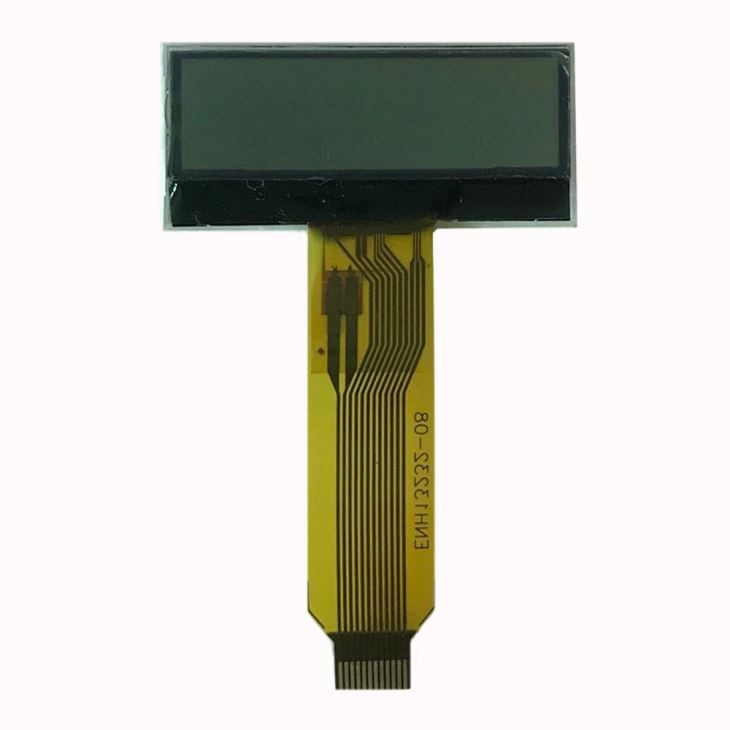

Transflective Graphic LCD
Cov khoom siv Transflective Graphic LCD yog siv ntau yam khoom siv hluav taws xob, muaj cov txiaj ntsig zoo. VA kua siv lead ua yog luv rau Vertical Alignment kua siv lead ua. Koj puas xav tau cov duab kos duab? Peb cov duab LCD modules tuaj yeem txuas thiab sib txuas lus nrog yuav luag txhua lub tshuab tswj hwm (microcontrollers, microprocessors, PCs, thiab lwm yam) thiab ua kom yooj yim dua puas tau suav nrog LCD hauv koj cov khoom tsim.
- Khoom Taw qhia
Khoom Paub meej
Cov khoom siv Transflective Graphic LCD yog siv ntau yam khoom siv hluav taws xob, muaj cov txiaj ntsig zoo. VA kua siv lead ua yog luv rau Vertical Alignment kua siv lead ua. Koj puas xav tau cov duab kos duab? Peb cov duab LCD modules tuaj yeem txuas thiab sib txuas lus nrog yuav luag txhua lub tshuab tswj hwm (microcontrollers, microprocessors, PCs, thiab lwm yam) thiab ua kom yooj yim dua puas tau suav nrog LCD hauv koj cov khoom tsim.
Peb muab cov lcd modules uas siv tag nrho viav vias RS232, SPI, logic-theem serial, I2C thiab USB. Yog tias muaj qhov tshwj xeeb serial lcd koj tab tom nrhiav Hu rau peb cov kev txhawb nqa thiab lawv tuaj yeem pab nrhiav nws.
Specifications
128x64 Transflective Graphic LCD | |
LCD hom | FSTN/Transflective/Positive |
Xim | Monochrome |
Zaub daws teeb meem | 128x64 |
Daim duab Dimension | 35.5 x 16 mm |
Saib cheeb tsam (VA) | 31.9 x 9.5 mm |
Active Area (AA) | 29.02 x 7.02 hli |
Saib Kev Qhia | 12 teev |
Driver IC | TIAB SA 7567 |
Txuas | COG plus FPC |
Backlight | 2 Ntsuab LED |
Txoj Kev Tsav Tsheb | 1/32 lub luag haujlwm, 1/6 bias |
RoHS | Yog lawm |
FAQ
1. Q: Kuv puas tuaj yeem muaj tus qauv txiav txim?
A: Yog, Peb zoo siab txais tos cov qauv rau koj los kuaj qhov zoo.
2. Q: Kuv tuaj yeem tau txais tus qauv ntev npaum li cas?
A: Cov qauv tam sim no xav tau 3 mus rau 5 hnub, cov qauv customized xav tau 14 txog 20 Hnub.
3. Q: Koj tus nqi zoo tshaj ntawm koj cov khoom yog dab tsi?
A: Peb yuav hais koj tus nqi zoo tshaj plaws raws li koj xav tau, xws li kom muaj nuj nqis thiab hom, yog li thov qhia rau peb paub cov ntsiab lus, peb yuav tawm tswv yim rau koj nrog tus nqi zoo tshaj plaws thiab lub sijhawm ua haujlwm.
