Parallel Cim Cim LCD

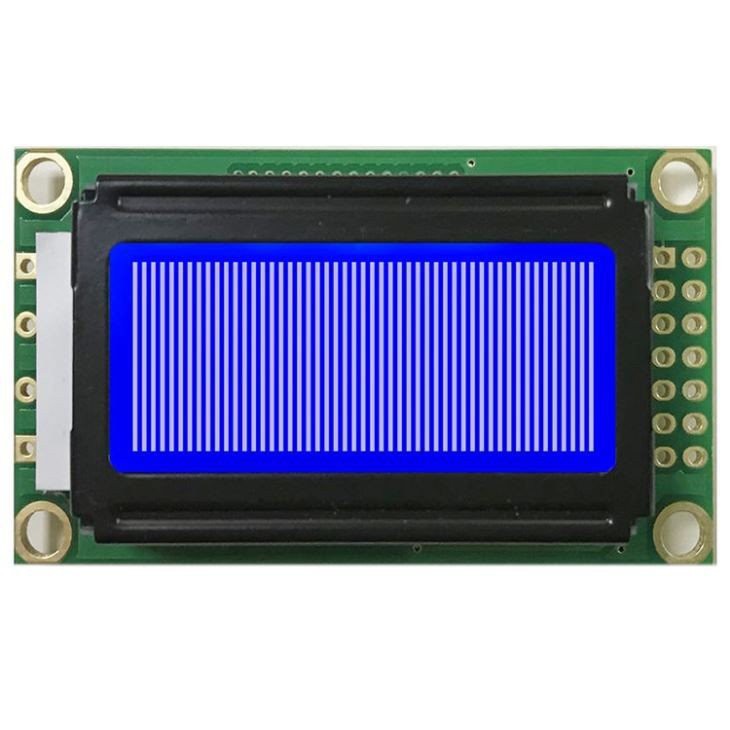

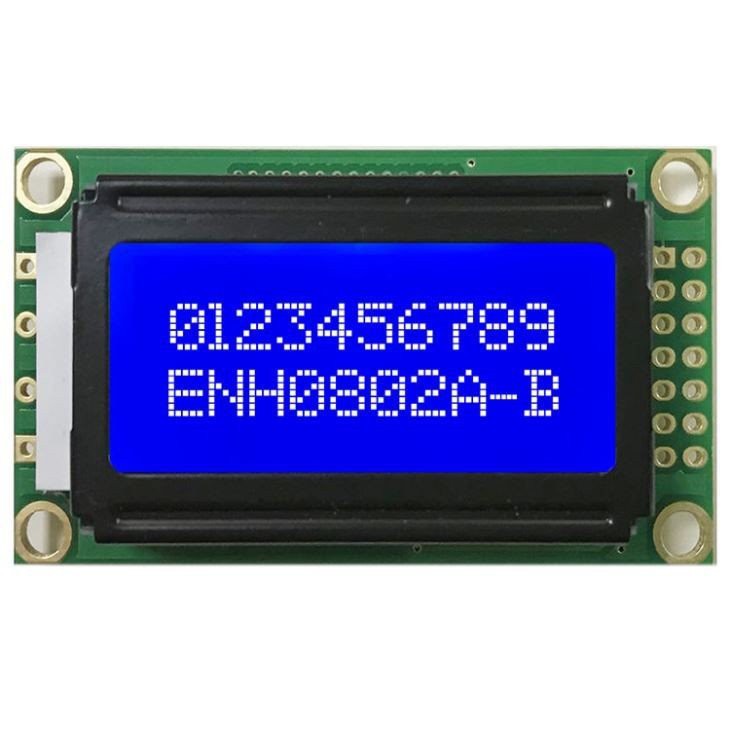

Parallel Character LCD 8x2, RoHS Raws Li, Dawb Ntug LED Backlight, STN Negative, Xiav, Transmissive -20 degree rau ntxiv rau 70 degree 6:00. Muaj nyob rau hauv ob peb variations ntawm backlight thiab polarizer (yam tsawg kawg txiav txim yuav tsum tau) 8-ntsis parallel interface.Industry-standard SPLC780D tshaj maub los.
- Khoom Taw qhia
Khoom Paub meej
Parallel Character LCD 8x2, RoHS Raws Li, Dawb Ntug LED Backlight, STN Negative, Xiav, Transmissive -20 degree rau ntxiv rau 70 degree 6:00. Muaj nyob rau hauv ob peb variations ntawm backlight thiab polarizer (yam tsawg kawg txiav txim yuav tsum tau) 8-ntsis parallel interface.Industry-standard SPLC780D tshaj maub los.
Cov ntsiab lus ntawm LCD
Zaub hom: 8 cim x 2 kab
LCD hom: STN, NEGATIVE (xiav), TRANSMISSIVE
Tsav Tsheb: LCD Module: 1/16Duty, 1/5Bias
Saib kev taw qhia: 6 teev
Backlight Hom: SIDE WHITE
Interface: 8-ntsis MPU interface
Tsav IC: SPLC780D

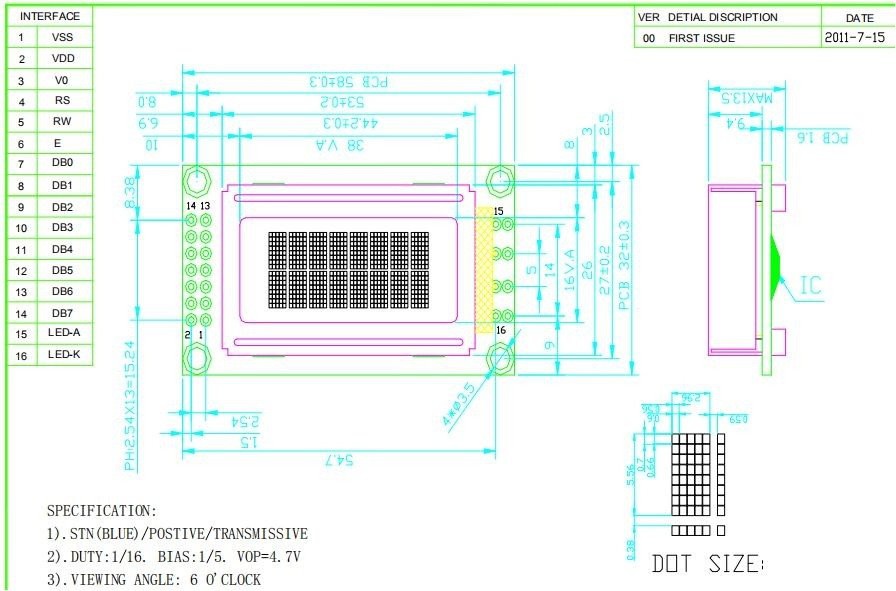

Qhov Loj: 58 (L) * 32 (W) * Max 13.5 (T) mm
Qhov Loj: 38(L) * 16(W) mm
Dot loj: {{0}}.56(W) * 0.66(H) mm
Dot suab: {{0}}.6(W) * 0.7(H) mm
Qhov loj me: 2.96 (W) * 5.56 (H) mm
Peb Qhov Kev Pabcuam
1. Kev txiav txim me me yuav raug txais.
2. Kev tsim khoom loj yuav tau lav.
3. Qauv coj mus kuaj: 10 hnub.
4. Lub sij hawm ua khoom loj: 30 hnub.
5. 100 feem pua cov khoom kuaj thiab tshuaj xyuas ua ntej ua zaub mov xa tuaj.
6. 100% hloov pauv dawb rau cov khoom tsis raug.
