Standard Graphic Low Power Monochrome LCD
Hongrui yog tus thawj coj SZ muab kev pabcuam ntawm LCD zaub modules. Peb tshwj xeeb hauv kev muab peb cov neeg siv khoom zoo tshaj plaws hauv cov khoom lag luam. Peb nqa ntau yam duab, cim, OLED, TFT zaub. Yog tias koj tab tom nrhiav ib yam dab tsi uas peb tsis muaj, thov qhia rau peb paub thiab peb yuav ua qhov zoo tshaj plaws los nrhiav nws.
- Khoom Taw qhia
Khoom Paub meej
Hongrui yog tus thawj coj SZ muab kev pabcuam ntawm LCD zaub modules. Peb tshwj xeeb hauv kev muab peb cov neeg siv khoom zoo tshaj plaws hauv cov khoom lag luam. Peb nqa ntau yam duab, cim, OLED, TFT zaub. Yog tias koj tab tom nrhiav ib yam dab tsi uas peb tsis muaj, thov qhia rau peb paub thiab peb yuav ua qhov zoo tshaj plaws los nrhiav nws. Ntxiv rau peb cov ntawv teev lus loj ntawm cov lus qhia, peb muab cov khoom siv txhim kho LCD, tawg boards, cables thiab tag nrho cov LCD software thiab cov tsav tsheb uas koj xav tau los tsim koj cov khoom lossis qhov project.
Shenzhen Hongrui Photoelectric Technology Co., Ltd., kev tshaj lij LCD zaub, LCM LCD module, LED backlight qhov chaw, TP kov npo tsim, tsim, tsim. Nrog ib pab pawg neeg ua haujlwm zoo, muaj kev paub txog engineering thiab cov neeg ua haujlwm, muab cov khoom zoo thiab cov kev pabcuam rau koj.
Ntsiab nta

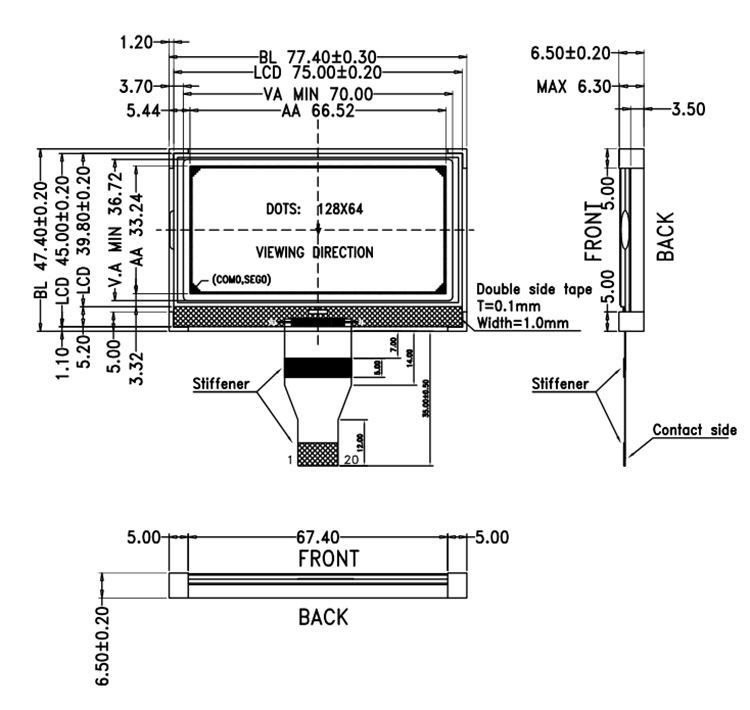

Standard 128x64 Graphic Low Power Monochrome LCD | |
Kev daws teeb meem | 128*64 |
Daim Ntawv Qhia Loj | 77.4 * 47.4 hli |
Saib cheeb tsam | 70 * 36.72 hli |
Chaw ua haujlwm | 66.52 * 33.24 hli |
Txuas | COG plus FPC |
Driver IC | SWB 7565R |
Backlight | 4PCS Dawb LED |
Zaub hom | FSTN, Dub -White, Transflective, Zoo |
Saib lub kaum sab xis | 12:00 |
Txoj Kev Tsav Tsheb | 1/65 lub luag haujlwm, 1/9 bias |
Sab saum toj | -20 degree TO ntxiv rau 70 degree |
Tst | -30 degree TO ntxiv rau 80 degree |
Raws li RoHS | Yog lawm |
Thov hu rau peb rau datasheet thiab programming. | |
FAQ
1. Q: Kuv puas tuaj yeem muaj tus qauv txiav txim?
A: Yog, Peb zoo siab txais tos cov qauv rau koj los kuaj qhov zoo.
2. Q: Koj puas muaj MOQ txwv?
A: Tsis yog, Peb tsis yog.
3. Q: Kuv tuaj yeem tau txais tus qauv ntev npaum li cas?
A: Cov qauv tam sim no xav tau 3 mus rau 5 hnub, cov qauv customized xav tau 14 txog 20 Hnub.
4. Q: Lub sijhawm ua haujlwm yog dab tsi?
A: Feem ntau peb lub sijhawm tsim khoom yog nyob ib ncig ntawm 4 lub lis piam ua haujlwm. Yog tias koj muaj hnub kawg hauv siab, peb yuav ib txwm ua kom tau raws li nws, txawm li cas los xij nws tseem nyob ntawm qhov muaj cov khoom siv raw thiab lub sijhawm xyoo.
Cim npe nrov: txheem graphic low power monochrome LCD, Tuam Tshoj, lwm tus neeg, Hoobkas, customized, hais, yuav luv nqi, dawb qauv, ua nyob rau hauv Suav teb
